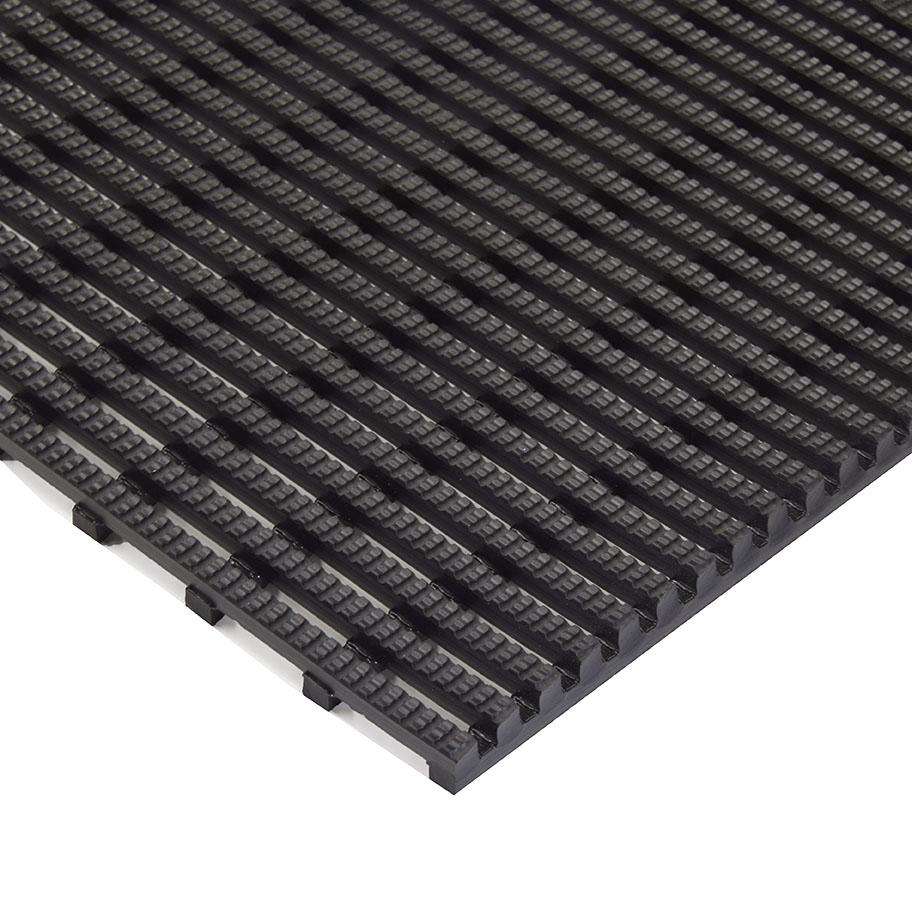

Vynagrip Safety Drainage Matting
Description
Vynagrip drainage safety mats are a great way to create a slip resistant floor in any industrial or commercial application. Built from top quality material, the Vynagrip offers a very high slip resistant rating (DIN 51130 - R11) along with a top liquid drainage rating, which meet the highest international standards.
Not only does the Vynagrip offer superior anti-slip functionality, but it has proven to have effective anti-fatigue properties along with having the ability to increase the overall hygiene of the facility.
The black Vynagrip material is made from 100% recycled material, making it environmentally friendly.
Specifications
| Material | Flexible Polyvinyl Chloride (PVC) |
|---|---|
| Construction | Open Grid |
| Face Style | Textured Surface |
| Face Fibre | PVC |
| Application | Wet Industrial/Commercial Areas |
| Total Height | 15mm (3/5") |
| Linear Feet | 4' |
| Weight | 1.6 lbs/sf |
| Acoustic | Excellent sound absorption |
| Anti-fatigue |
10% reduction in fatigue |
| Chemical | Resistant to most acids, alkalines and oils. |
|
Electrical |
BS 2782: Part 2 Method 230A. |
|
Hygiene |
|
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. |
| Slip resistance | ASTM E303- Dry: 87-104 / Wet: 72-88 DIN 51130: R11, V10 |
| Thermal | Designed to function at temperatures from -9°F and up to +140°F. Slight size variation may occur at temperature extremes.. |
| UV light | Resistant to PVC degradation. The red color isn’t colorfast in direct sunlight. |
Usage & Installation Notes
Vynagrip is best suited for foot traffic and light-duty applications. As a loose-lay matting system, it is not recommended for heavy pallet loads or frequent wheeled traffic. Without being affixed, the mat may buckle or shift (“walk”) under stress caused by carts or equipment.
Before installation, it’s important to consider the flooring surface:
-
Concrete floors: Must be properly sealed. If unsealed concrete is exposed to water pooling, PVC matting may “stick” to the porous surface over time. This is not due to a chemical reaction but a mechanical effect—water trapped beneath the mat can freeze, creating a suction or ice-bonding effect.
-
Metal floors: Ensure surfaces are smooth and dry before laying the mat to prevent movement and moisture retention.
These factors stem from environmental conditions such as temperature fluctuations, moisture pooling, and ice formation, rather than any incompatibility between PVC and the substrate.
