Viper Deck 500 Ground Protection Rig Mats

Description

The Viper Deck 500 Ground Protection Rig Mats are built to safeguard turf and sensitive surfaces while providing reliable access and traction across mud, sand, and rugged terrain. These versatile ground protection mats are ideal for creating temporary roadways for vehicles, trucks, and heavy equipment, as well as work pads for drilling, administrative compounds, and even flooring for outdoor events.

Crafted from molded plastic, Viper Deck 500 ground mats are lightweight, flexible, and extremely durable—engineered to perform under heavy loads without breaking down. Each mat features a dual-sided design: a rugged pattern for maximum traction in demanding environments and a smooth side that evenly distributes weight, making them excellent grass protection mats.

For added safety and stability, the mats can be used with connector links to lock them securely in place. This ensures safer vehicle movement, reduces slipping, and keeps the mats aligned even under high-rev driving or heavy equipment use.

Choose Viper Deck 500 for reliable, reusable, and cost-effective rig mats for sale that deliver proven performance in construction, events, and industrial projects.

Buy Connectors

Click here to add connectors to your order.

Available in 2 Prong single connectors or 4 Prong double connectors configurations, these connectors are used to hold the Viper Deck mats in place during deployment to ensure a secure fit and stronger traction.

If you are ordering connectors with your mats, we recommend the following quantity per mat:

2 x Single connectors

1 x Double connectors

Specifications

Viper Deck 500
Product Size	Weight
2' x 8' x 12.55 mm	38.5 lbs
2' x 8' x 16 mm	50 lbs
2' x 8' x 20 mm	62.5 lbs
4' x 8 x 12.55 mm	77 lbs
4' x 8 x 16 mm	100 lbs
4' x 8 x 20 mm	125 lbs



Mechanical Properties
Tensile Strength	23 – 26 Mpa
Flexural Strength	25 – 28 Mpa
Charpy Notched Impact Strength	1936 – 1967 Mpa
Poisson's Ratio	5 – 6 kJ/m2
Compression Testing (max value before test terminated)	0.35 – 0.38 (theoretical)



Load Capacity
12 mm Thick Viper Deck	Up to 80 Tons (210psi) on hard surfaces
General Properties
Density	940 – 9665 kg/m3
Shrinkage	4-Feb%
Water Absorption	0.01%
Thermal expansion	110 – 130 e-6/K
Thermal conductivity	0.46 – 0.52 W/m.K
Specific heat	1800 – 2700 J/Kg.K
Melting temprature	108 - 134°C
Glass temprature	0°C
Service Temprature	-115°C
Resistivity	5e+17 - 1e+21 ohm.mm2/m
Breakdown Potentail	17.7 - 19.7kV/mm
Dielectric loss factor	0.0005 - 0.0008
Friction Coefficent	0.25 - 0.30
Refraction Index	1.52 -  1.53

Application

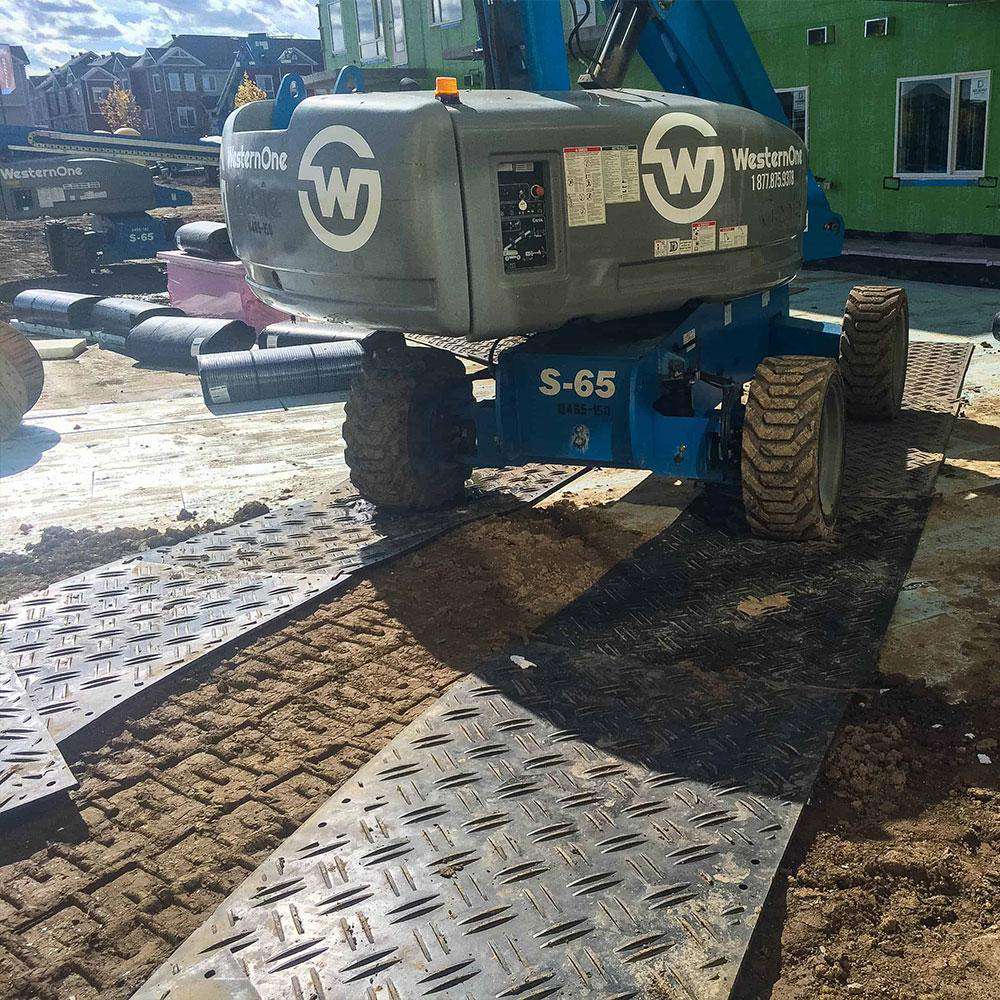

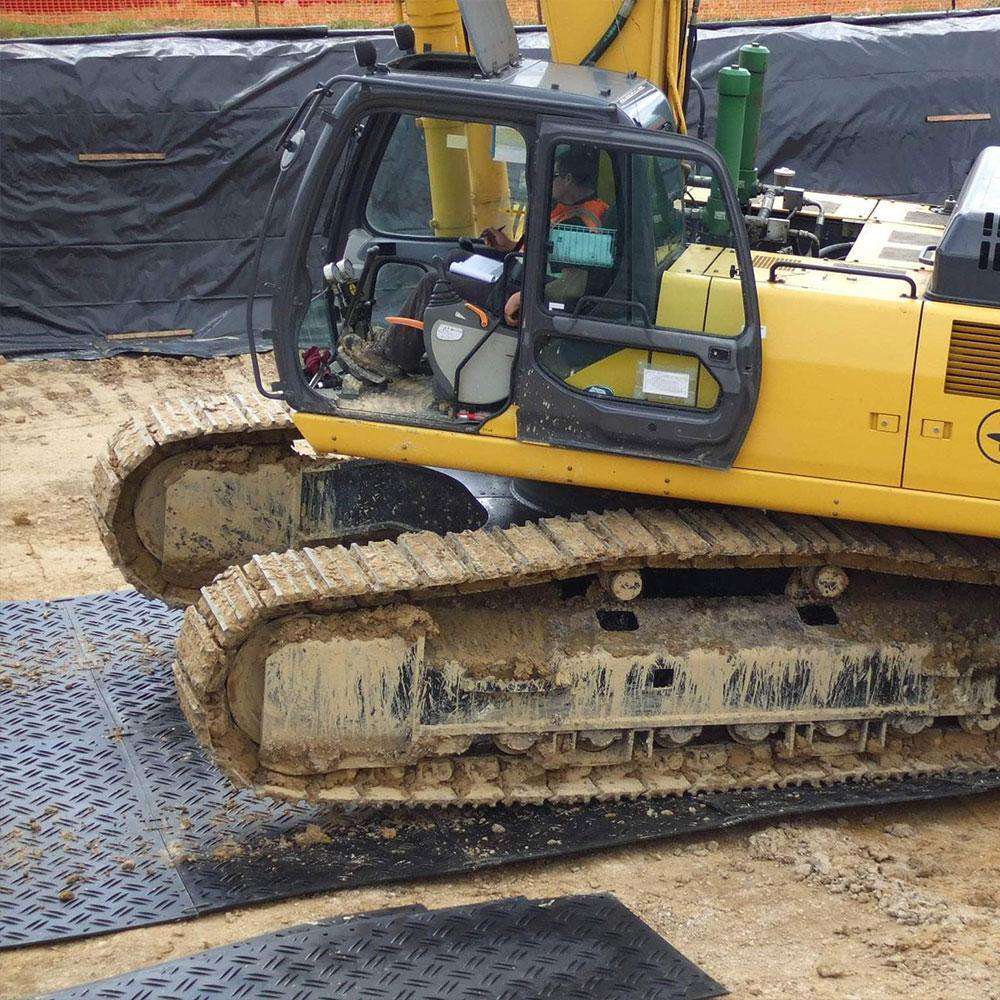

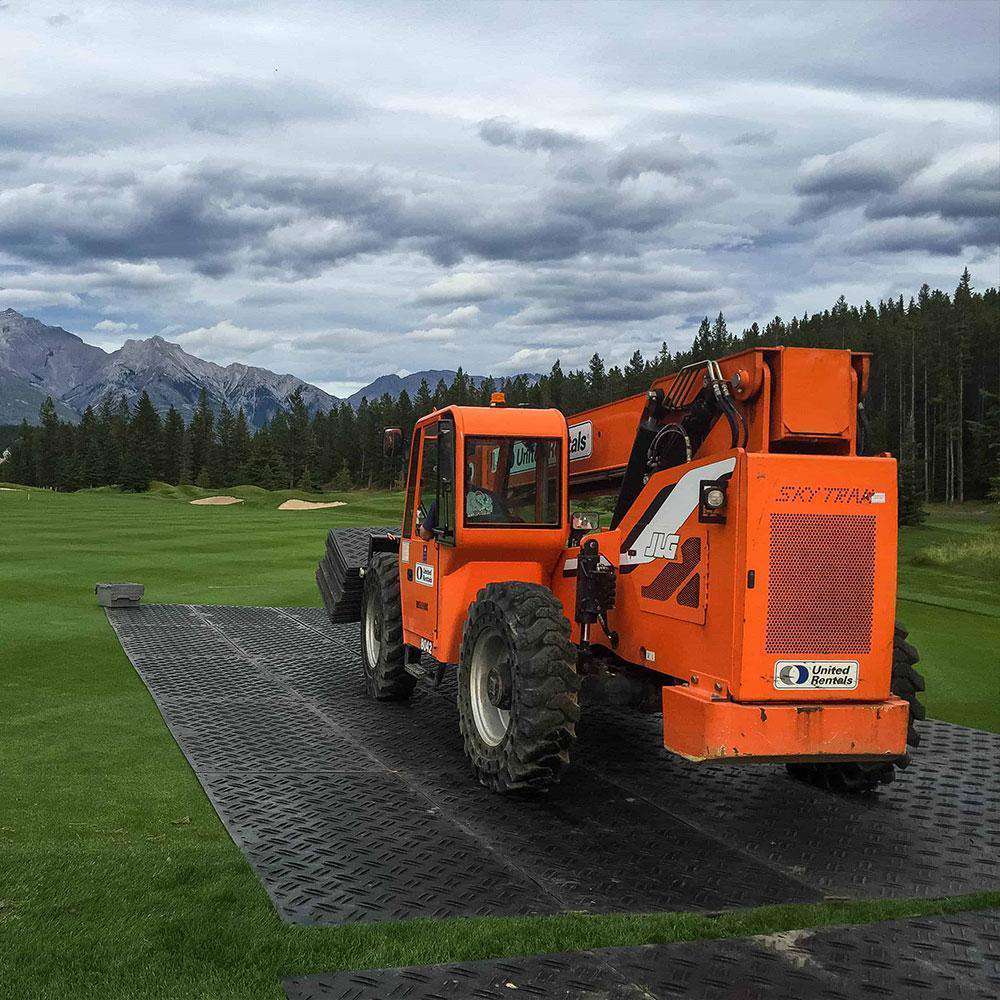

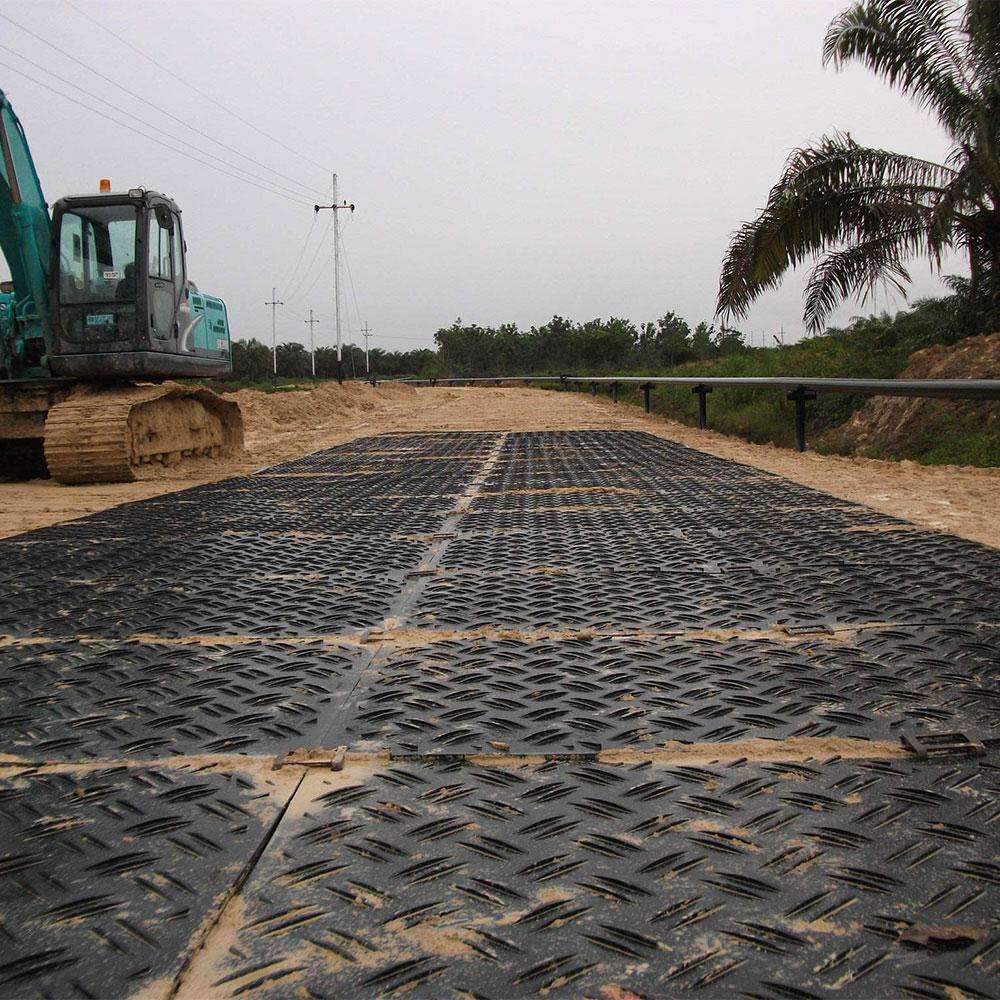

The Viper Deck 500 Ground Protection Rig Mats virtually eliminate rutting, soil compaction, and surface damage to sensitive grass and turf. Engineered to support loads of up to 80 tons, these ground protection mats provide dependable access for trailers, vehicles, and heavy equipment over soft or unstable ground.

Whether it’s mud, sand, snow, or grass—even on gently sloping terrain—these ground mats allow equipment to traverse safely and efficiently. By reducing stress on drivelines and frames, they also protect vehicles from excessive wear. You’ll save on labor costs, prevent delays, and improve worker safety by avoiding the challenges of bogged-down machinery.

Perfect applications include:

• Outdoor events

• Excavation and construction sites

• Stadiums and large venues

• Landscaping projects

• Administrative compounds

Features

• • Protects valuable turf and landscaping from rutting and compaction

  • Creates instant roadways, work pads, or pedestrian pathways on mud, sand, marsh, uneven, or soft terrain

  • Superior alternative to plywood or fiberglass—will not warp, rot, crack, or delaminate

  • Saves time and labor by enabling smooth vehicle and equipment movement over difficult terrain

  • Prevents costly project delays and worker injuries caused by stuck equipment

  • Protects vehicles and heavy machinery from damage on unstable ground

  • Minimizes cross-contamination issues common with plywood sheets

  • Reduces post-project site remediation and clean-up costs

  • Supports weights up to 80 tons with long-lasting durability
