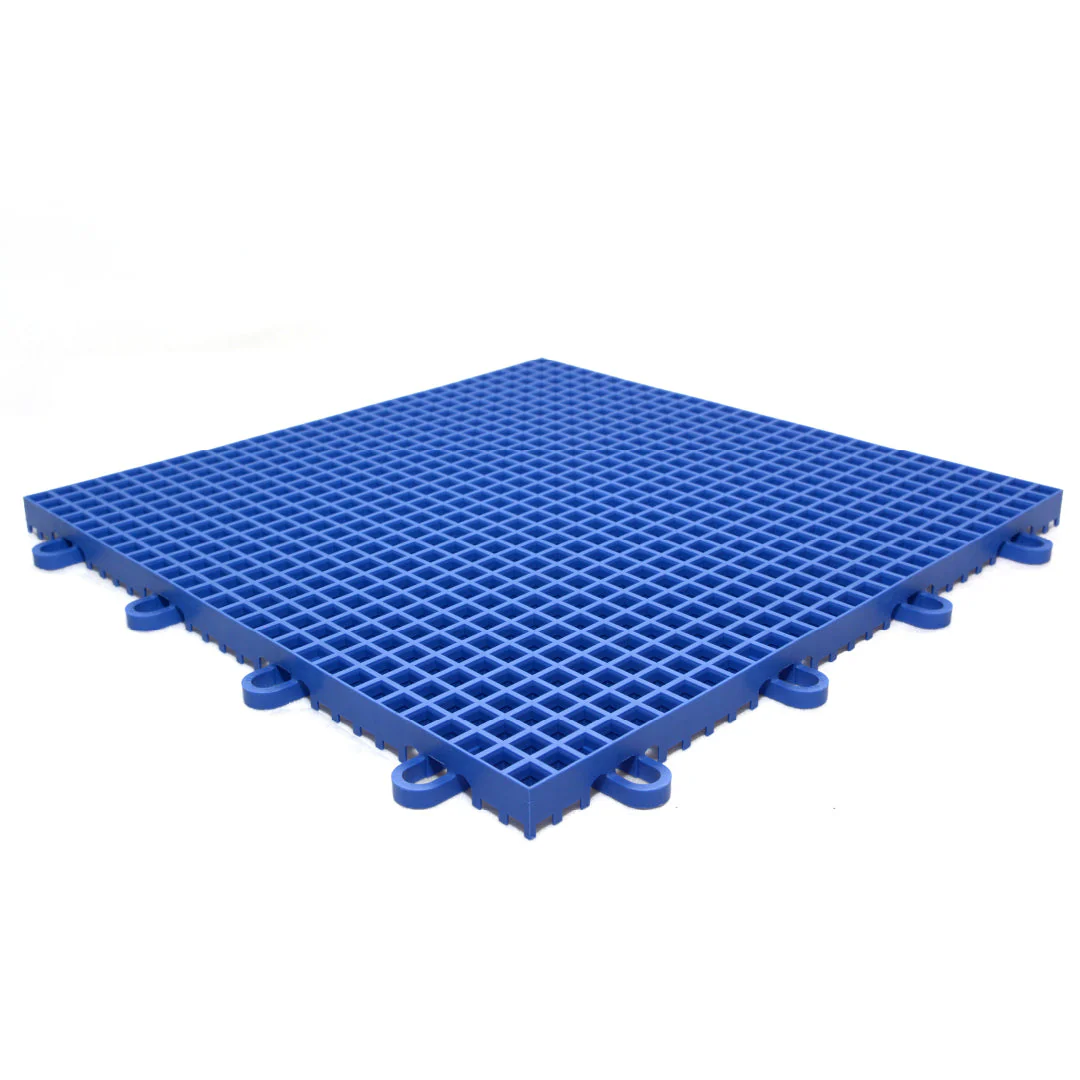

Outdoor Badminton Court Tiles
Description
These tiles offer a shock-absorbent surface that cushions impacts, providing a 10-15% softer feel compared to hard concrete, enhancing comfort and reducing strain during play.

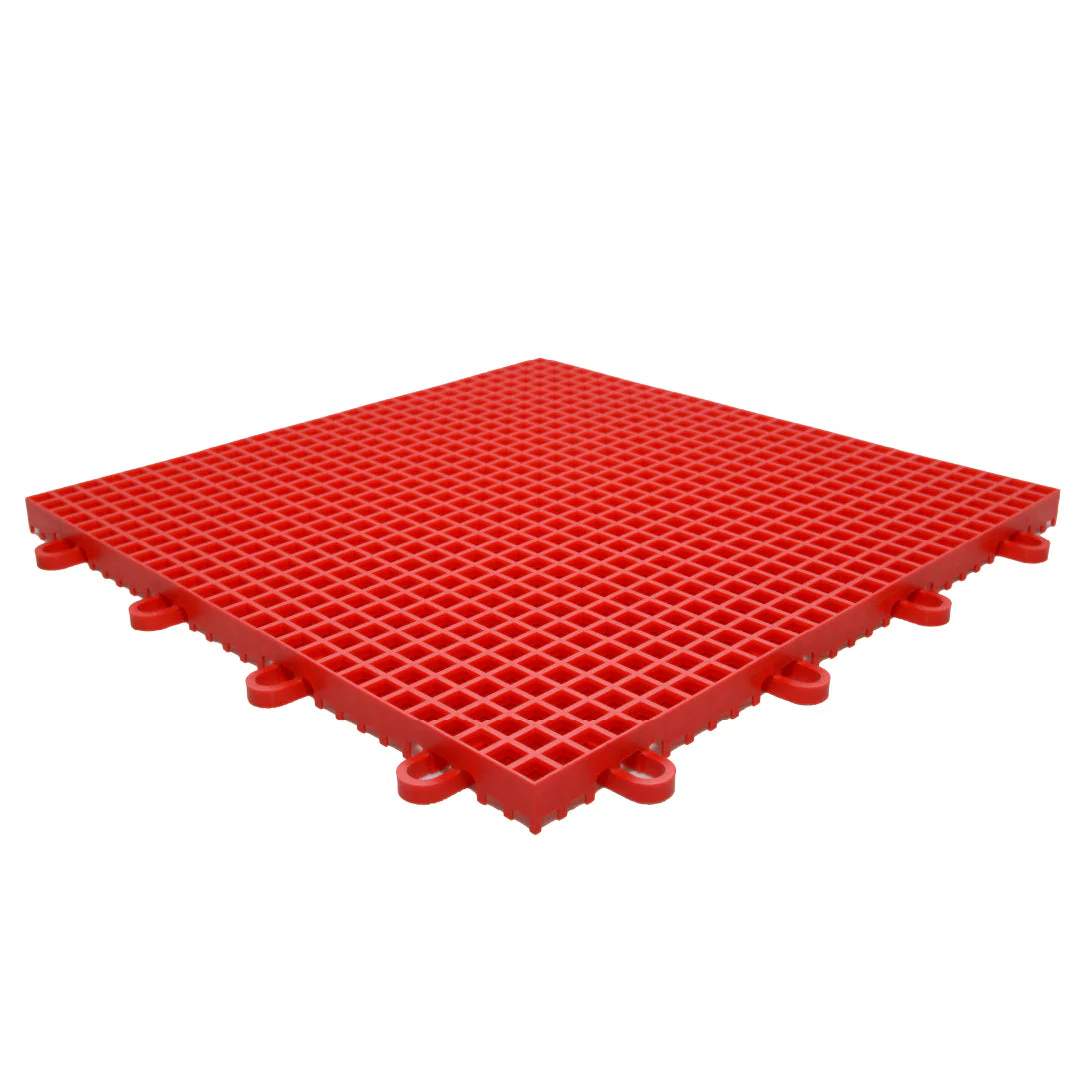

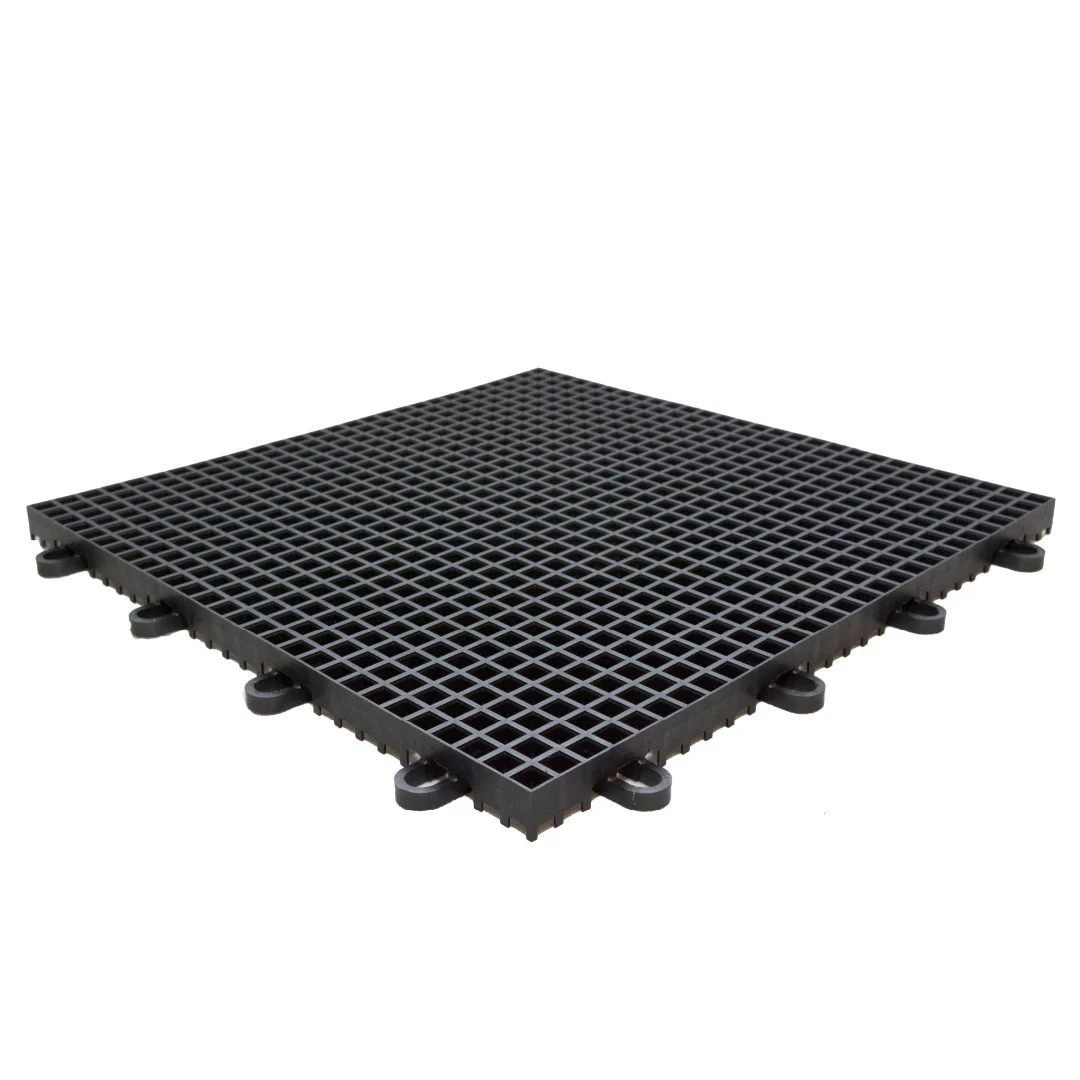

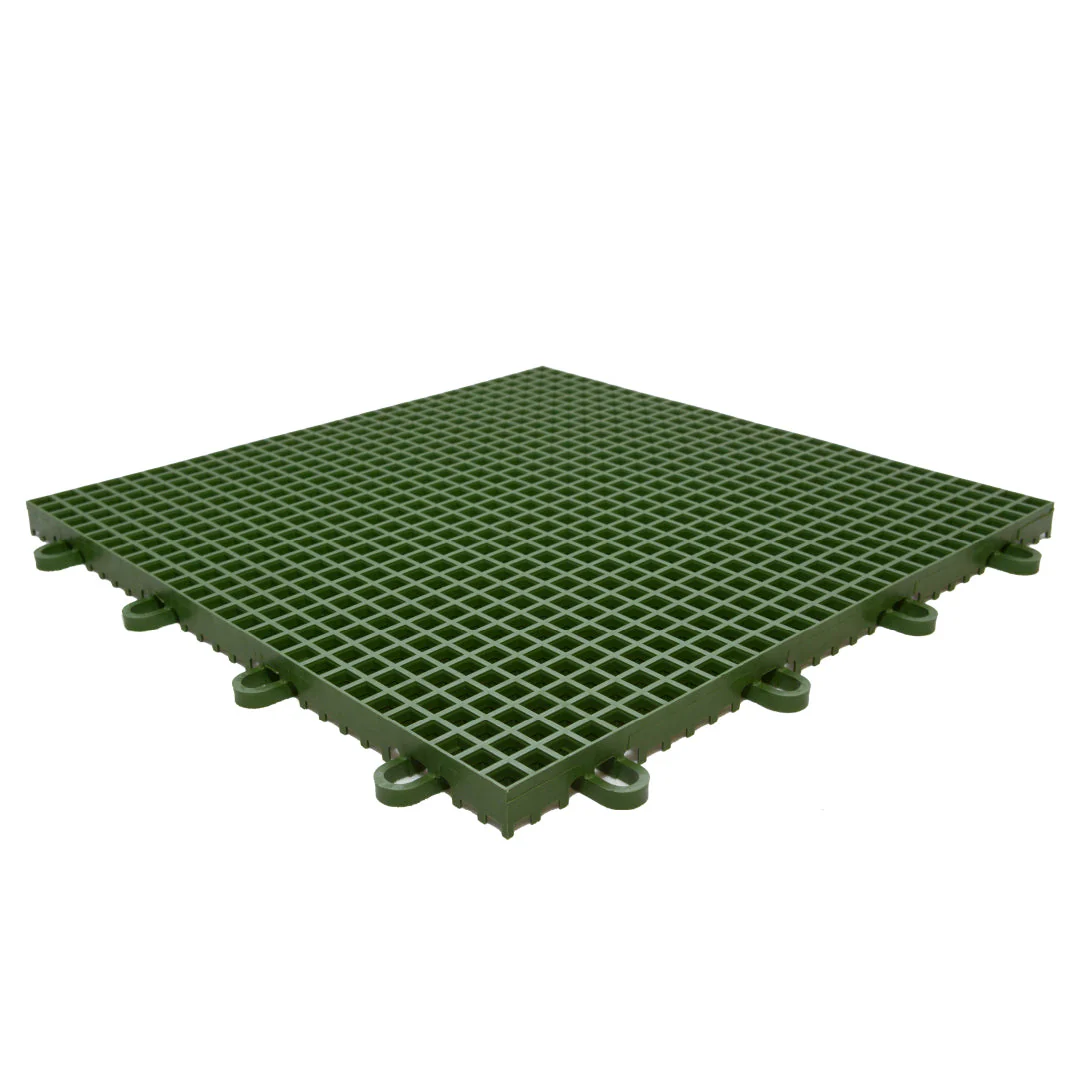

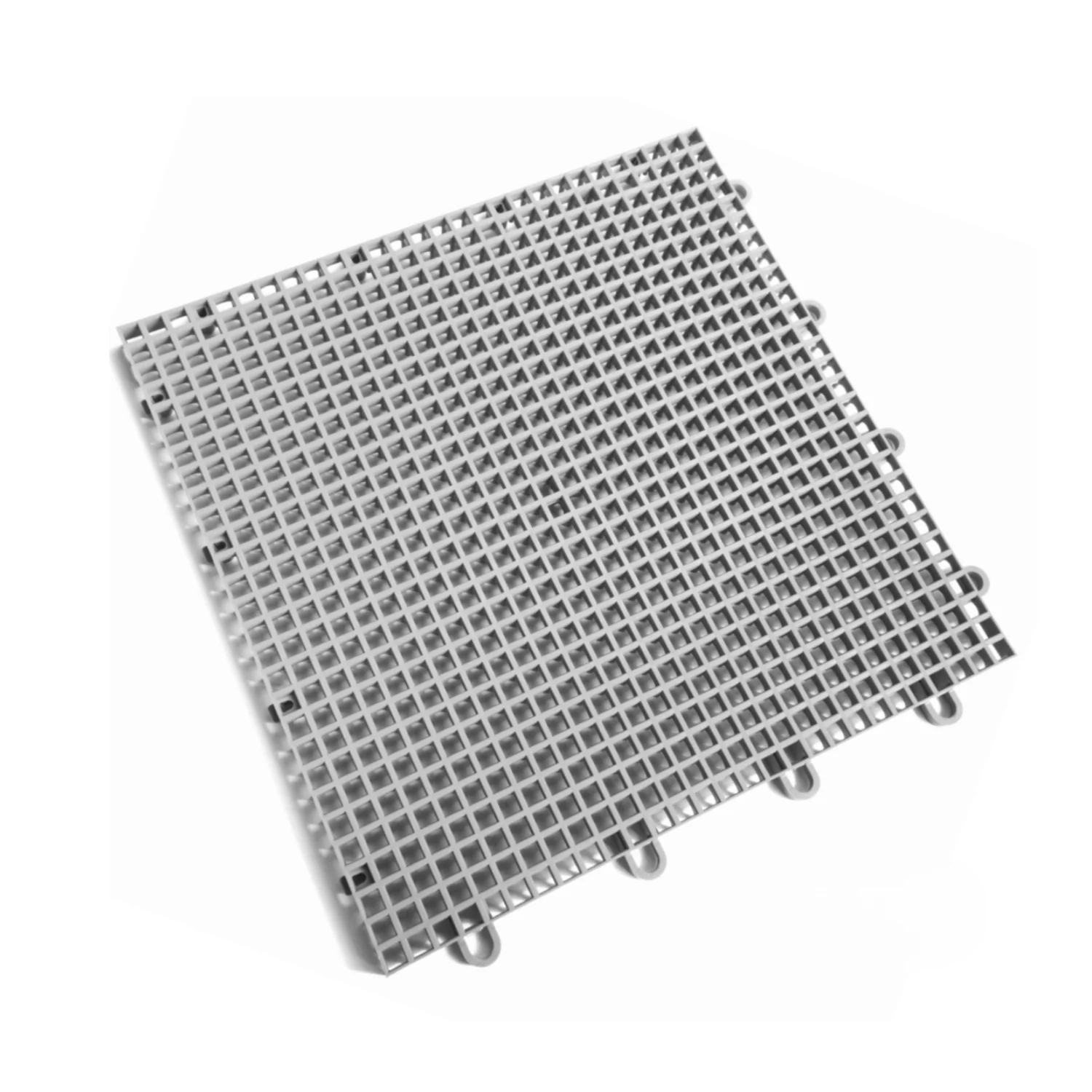

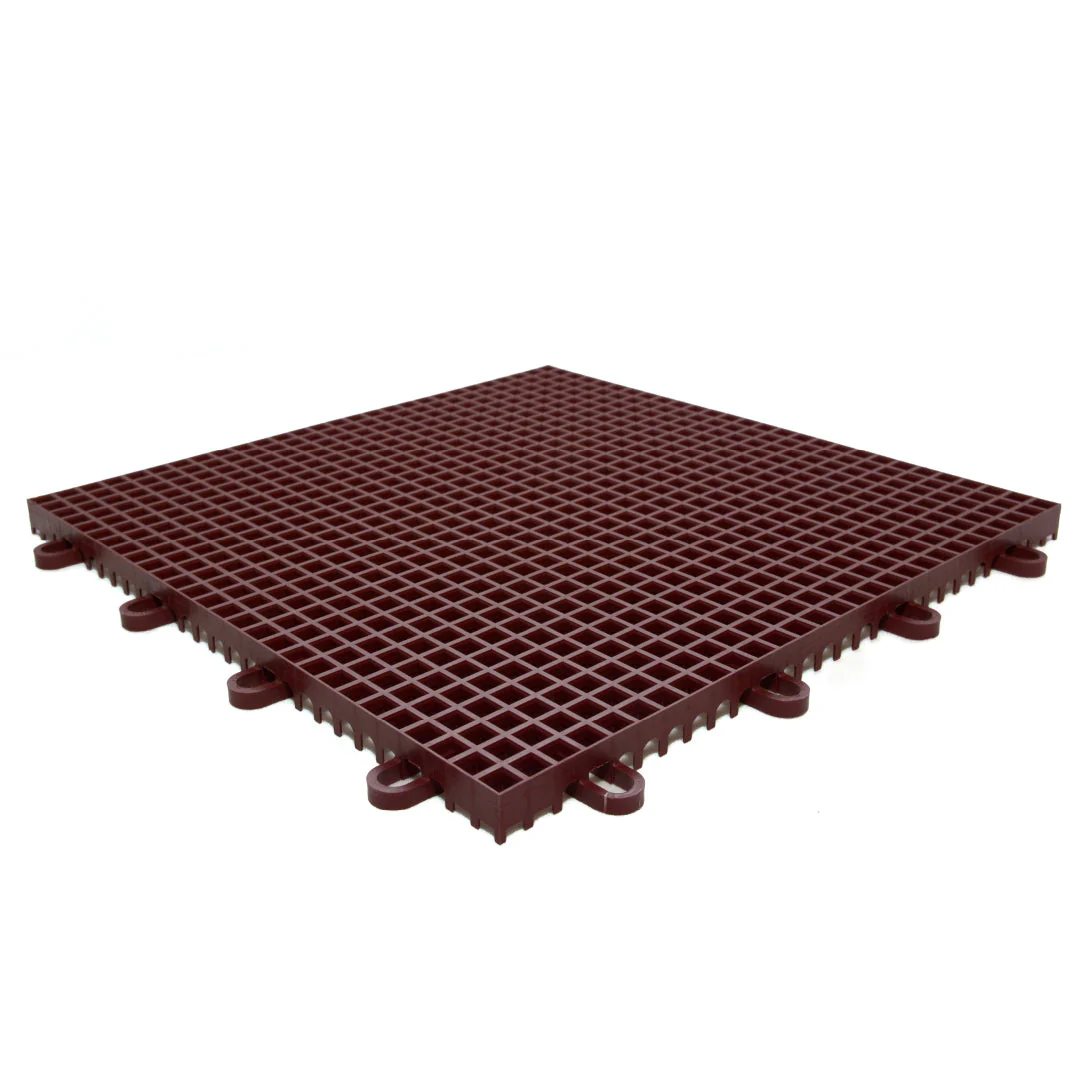

These strong modular tiles comes in 7 vibrant colors that are easy to work with and offer endless configuration possibilities, from single courts to multi-court complexes, providing a high-quality surface tailored to your specific needs and achieving a look that's uniquely yours.
Complete your outdoor court with Outdoor Sport Tile Edging.
Note: Due to different lighting situations, colors seen may not accurately reflect the actual color.
Requires preferably level concrete, asphalt pad, or compacted stone base pad for proper installation.
Specifications
| Dimension | 12" x 12" x 5/8" (30.48cm x 30.48cm x1.59cm) |
| Weight | 13 oz (370.59 g) |
| Material | Solid Polypropylene Tile |
| Flame Spread Index (ASTM E 84) | 90 |
| Smoke Generation (ASTM E 84) | 90 |
| Friction (ASTM C 1028) | Dry: 0.68, Wet: 0.67 |
| Compression vs. Crush (ASTM D 3998) | No Break |
| Noise Reduction Coefficient (ASTM C 423) | 5 – 10% |
| Rolling Load (DIN 18032-02) | Pass |
| Standard Deformation (DIN 18032-02) | 0.9 mm |
| Ball Rebound (DIN 18032-02) | 98% |
| Load Bearing Capacity (DIN 18032-02) | 180 psi |
| R-Value | x<1 |
| Flatness | 0.0 mm |
| Lateral Movement | 0.00” – 0.035” |
Features and Benefits
- Flame Resistant
- Enhanced Traction minimizing the risk of slips and falls during gameplay.
- Exceptional Durability that withstand heavy loads and impact without breakage
- Noise Reduction enhancing the overall playing experience
- Superior Performance that achieves consistent ball rebound rates of 98% (DIN 18032-02), ensuring a responsive playing surface for accurate shots and passes.
- Suitable for a variety of outdoor sports like Basketball, Volleyball, Roller Hockey and Badminton.
- All-Weather Design ensuring performance in diverse environmental conditions.
- Minimal lateral movement providing a stable and secure playing surface for intense action.
FAQs
Q: What type of base is required for installing Outdoor Badminton Court Tiles?
A: Outdoor Badminton Court Tiles require a preferably level concrete, asphalt pad, or compacted stone base pad for proper installation.
Q: Can Outdoor Badminton Court Tiles be installed on a grass base?
A: No, Outdoor Badminton Court Tiles are not suitable for installation on a grass base.
Q: Can Outdoor Badminton Court Tiles be installed on a rubber surface?
A: No, Outdoor Badminton Court Tiles are not compatible with rubber surfaces.
Q: Is it safe to drive over Outdoor Badminton Court Tiles?
A: No, driving over the tiles can disengage or break them. It is not recommended to drive over Outdoor Badminton Court Tiles.
Q: What other suitable sports can we use the Outdoor Badminton Court Tiles for?
A: Outdoor Badminton Court Tiles are suitable for Basketball, Volleyball, Roller Hockey, and Badminton. They are not suitable for tennis or pickleball.
General Concrete Specifications
• 4" Minimum compactable base material to grade
• Concrete pad 4" thick with 6" thickened edge
• 3000 psi mix
• Light broom finish
• Steel reinforcement ⅜" steel rebar 24" – 36" on center
• Slope/crown ½" – 1" per 16' ( ¼% – ½% slope)
• Saw cut expansion joints between 12' and 15' squares
Compacted Base Specifications
Download PDF for more details.
Installation
There are two parts to the inter-locking system:
All tiles on any given installation should always have the female loops going in the same direction. (Illustration 1)
CAUTION: If you inadvertently rotate a tile 90 degrees it will snap into place (Illustration 2)but you will not be able to complete the installation properly.
It is important that all debris be removed from the underlying surface before laying tiles,
eliminating lumps.
ASSEMBLY
Always begin the installation in one corner. Pointing the female loops in the direction that
additional tiles are to be added. (Illustration 3)
General Maintenance
DIRT, SAND, DUST, DEBRIS REMOVAL AND GENERAL CLEANING:
Once a year during down time (one day) of facility you may want to power wash, power blow (commercial leaf blower) vacuum, scrub (with commercial grade floor scrubbing machine that dispenses water or cleaning agent and vacuums it up). Do not use soap. Power washing would be based on grade of asphalt sloped for drainage and water had a way to drain out of facility court area.
